ITS – International Thermal Systems Oven

Specifications

Construction of oven began 4th quarter 2015 at ITS according to documentation. Unit was delivered to Wichita, KS in December 2015. We have original BOL from International Thermal Systems, LLC.

The books, data sheets, electrical and mechanical drawings are on two ITS thumb drives that come with unit.

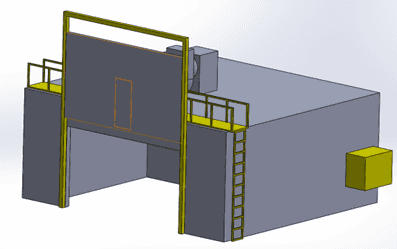

This is a fantastic machine that is available for immediate delivery. It has 12 vacuum ports on each side of machine. The front door is 18 x 10 feet. It is a vertical lift air operated door. The lift door incorporates a walk door for easy entry.

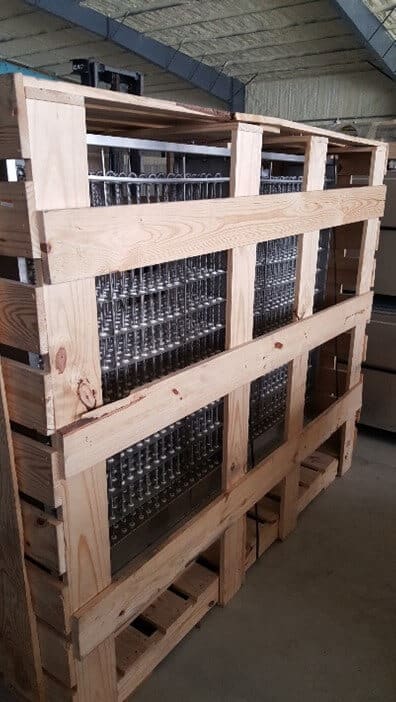

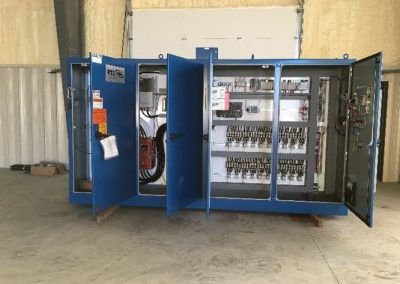

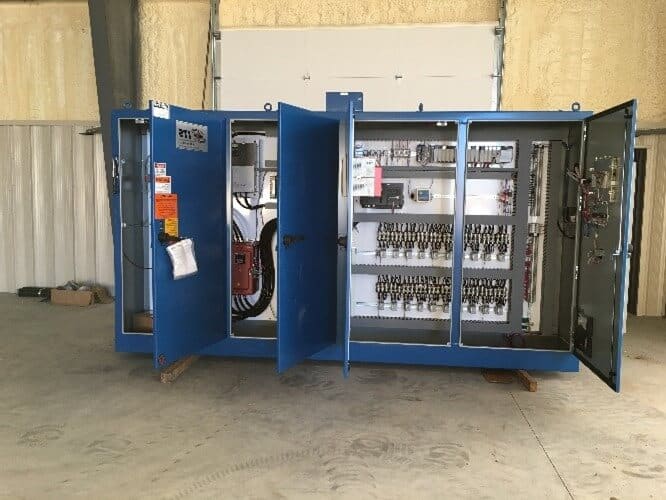

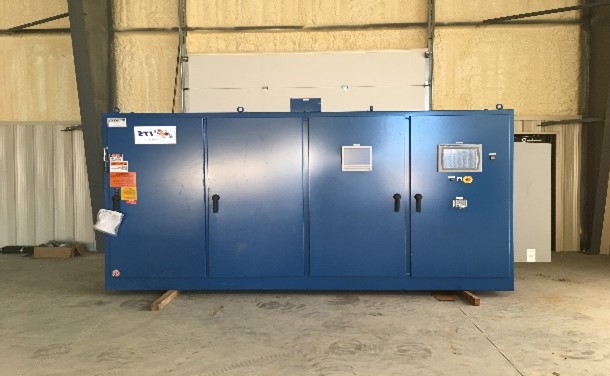

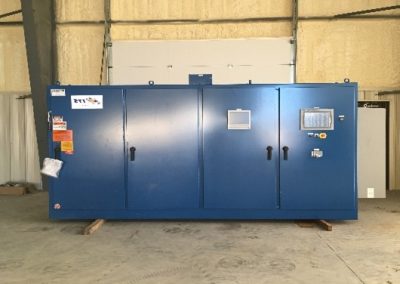

The Control cabinet is a dream for operations. We design control systems for ovens and accept for a few minor changes we would design the system with exactly the same controls.

Download PDF

Design Data

Temp Max 500 F Design 400
Load 15000 Lb
Estimated Shipping Weight 30,000 LB

Utilities Required

Temp Max 500 F Design 400
Load 15000 Lb
Estimated Shipping Weight 30,000 LB

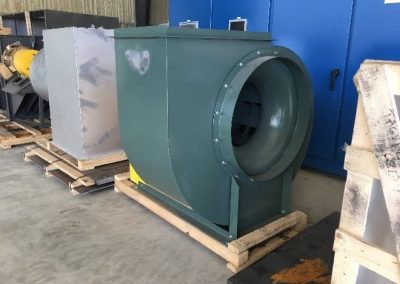

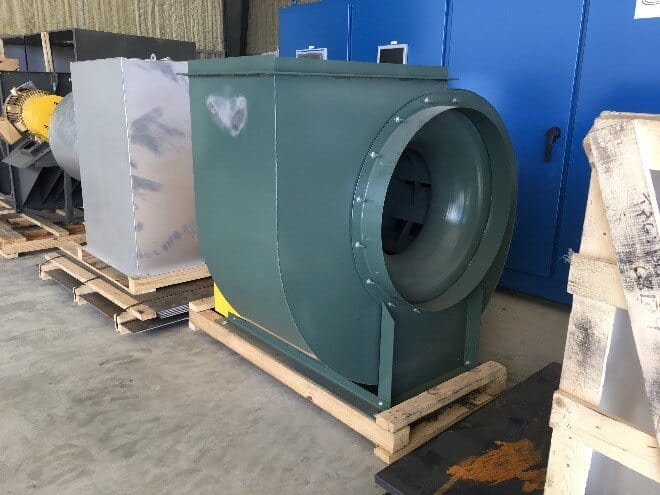

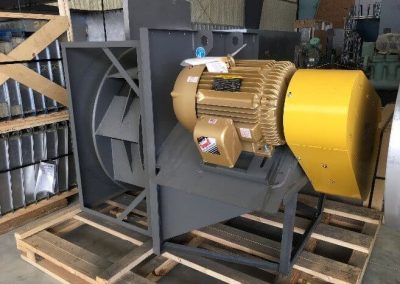

Fan Data

CFM 50,000

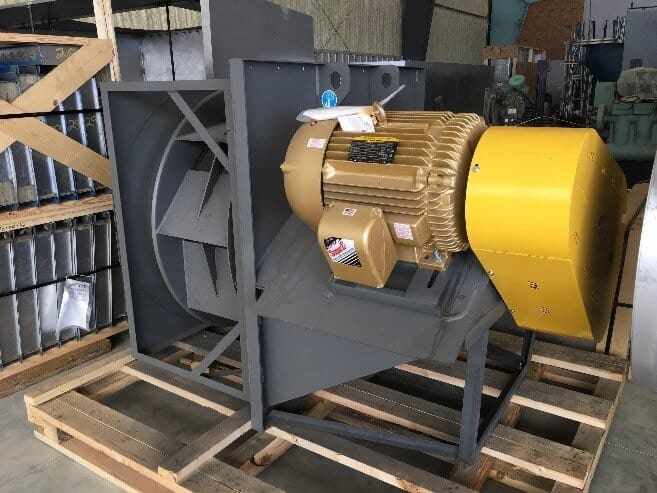

HP 50

Quick Cool Fan Data – For rapid cool down of parts

CFM 13,200
HP 7.5

Foot Print

Width 31′ – 5 1/5″ outside of panels plus apparatus
Height of Door 24′

Internal Work Space

Approximately 18 x 18 x 10 High
Work Zone Based on TUS – expected to be most of internal work space based on design and fan size.
Call for dimensional details.

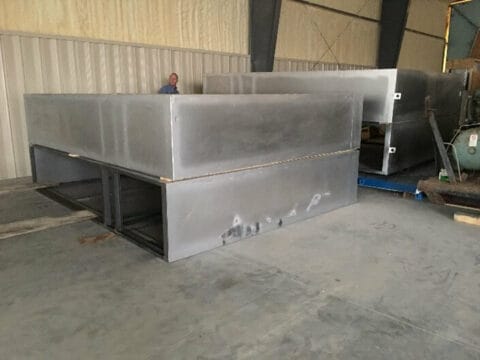

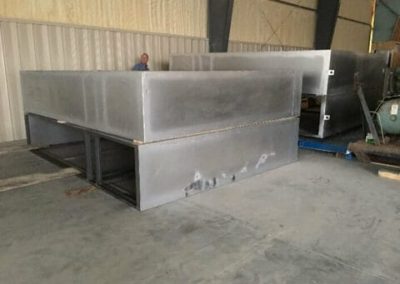

Ladder and handrails for fan access. All Steel Plate Floor.

Control System Features

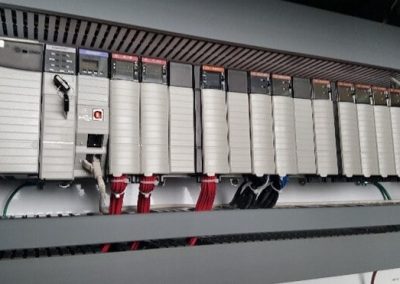

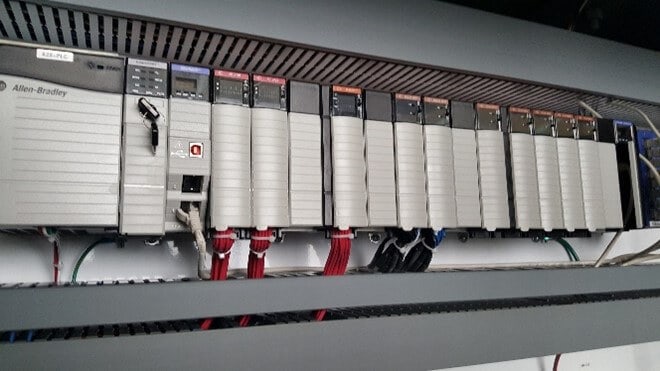

Allen Bradley 1756-L61 PLC and hardware
Allen Bradley PanelView Plus 1500 15 inch monitor
Allen Bradley Panel Mount UPS to keep controls alive during power failure.
Eurotherm high limit control.
Chessel 6180A Aerodaq – immediately puts data recording into SAE2750E compliance
